Home > TFT LCD Display >

Polcd Colorful 3.5 inch 320x480 Color Capacitive Touch IPS Viewing Angle TFT-LCD Panel Modules

Product Categories

Shenzhen P&O Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Polcd Colorful 3.5 inch 320x480 Color Capacitive Touch IPS Viewing Angle TFT-LCD Panel Modules

Name: Polcd Colorful 35 inch 320x480 Color Capacitive Touch IPS Viewing Angle TFTLCD Panel Modules
Brand: Polcd
Price: 1 USD

Quality Polcd Colorful 3.5 inch 320x480 Color Capacitive Touch IPS Viewing Angle TFT-LCD Panel Modules for sale

Brand Name : Polcd

Model Number : P035M068-IPS

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability : 40,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Resolution : 3.5 inch 320x480

Interface : 18BIT RGB

Brightness (cd/m²) : 300 nit

Viewing Direction(eye) : IPS

Driver IC : ILI9488

Display area : 48.96(H)x73.44(V)mm

Contact Now

Technical Parameters:

Model No.	P035M068-IPS
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Pin	40 pin
Display area	48.96(H)x73.44(V)mm
Pixel pitch	51(H)x153(V)um
Outline Dimension	54.50x84.71x2.10mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	700:1
Interface	18BIT RGB
Back-light	LED Side-light type
Drive IC	ILI9488
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Application

A 3.5 inch TFT LCD can be used in a variety of applications, including:

Portable electronic devices: A 3.5 inch TFT LCD is commonly used in portable electronic devices such as digital cameras, handheld gaming devices, portable media players, and GPS devices.

Industrial equipment: TFT LCDs are commonly used in industrial equipment such as test and measurement instruments, process control systems, and machine vision systems.

Medical devices: TFT LCDs are used in various medical devices such as patient monitoring systems, ultrasound machines, and medical imaging equipment.

Automotive applications: TFT LCDs are used in automotive applications such as dashboard displays, rearview cameras, and infotainment systems.

Consumer electronics: TFT LCDs are used in a variety of consumer electronics such as smartphones, tablets, and smartwatches.

Polcd Colorful 3.5 inch 320x480 Color Capacitive Touch IPS Viewing Angle TFT-LCD Panel Modules

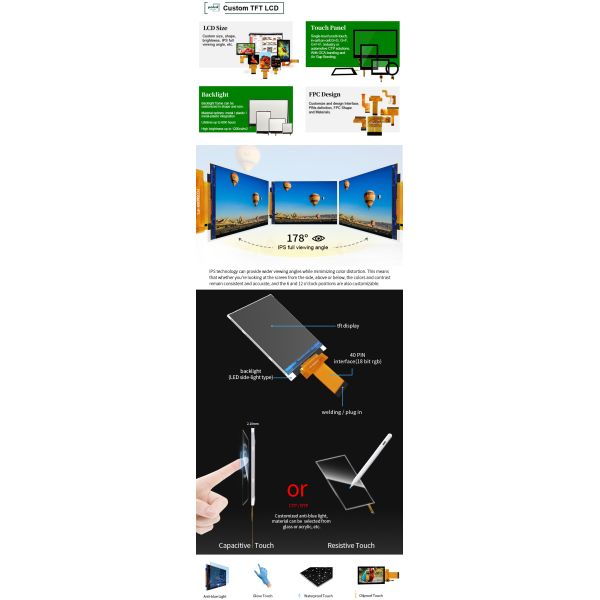

Polcd Colorful 3.5 inch 320x480 Color Capacitive Touch IPS Viewing Angle TFT-LCD Panel Modules Images
